  MOD SERIES: MOD Series - Printable View
Reference Page
 Back to Disconnects
Single Transformer Disconnect

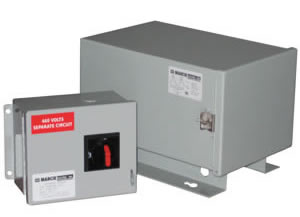

MOD Single Transformer
DETAILS:

• NEMA 12 Disconnect and NEMA 1 Transformer Enclosure
• Two separate sources for electrical enclosures
• Typically wired to line side of main disconnecting device to provide power    when main disconnect is in OFF position
• Transformer comes with grounded secondary
• Primary and secondary fuses provided
• Modular design allows two transformers in one enclosure to be mounted outside control panel while disconnect box may be mounted outside or on backplate of control panel
• Standard Disconnect comes w/5kA Short Circuit Current Rating (SCCR) Switch
• Special Voltages Available
• All dimensions are in inches(mm)
• UL and C-UL Listed

AVAILABLE OPTIONS:
SUFFIX

• 200kA Short Circuit Current Rating (SCCR) Switch
• Disconnect w/Pilot Light
• Disconnect w/Receptacle
• GFCI Receptacle
• Special Voltages
 - 200K
- PL
- WR
- GFCI
Reference Page

MOD Series Disconnect


MOD Schematic
Wiring Diagram

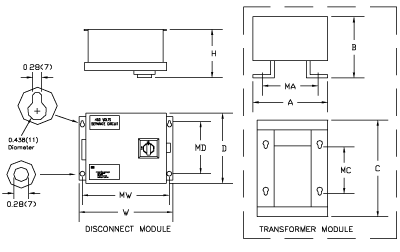

APPROXIMATE DIMENSIONS IN INCHES(MM)

P/N
VA
H
W
D
MW
MD
A
B
C
MB
MC
F1
F2
MOD1000
1000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
7.38(187)
8.38(213)
12.00(305)
5.38(137)
7.00(178)
5A
8A
MOD1500
1500
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
7.38(187)
8.38(213)
12.00(305)
5.38(137)
7.00(178)
7A
12A
MOD2000
2000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
8.50(216)
8.38(213)
12.00(305)
6.50(165)
7.50(191)
10A
15A
MOD3000
3000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
8.50(216)
8.38(213)
12.00(305)
6.50(165)
7.50(191)
15A
25A
MOD5000 5000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
10.00(254)
8.38(213)
12.00(305)
8.00(203)
11.00(279)
25A
40A
MOD7500 7500
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
10.00(254)
8.38(213)
12.00(305)
8.00(203)
11.00(279)
40A
60A
MOD10000 10000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
14.00(356)
8.38(213)
12.00(305)
12.00(305)
14.00(356)
50A
80A
MOD1000-200K
1000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
7.38(187)
10.25(260)
12.00(305)
5.38(137)
7.00(178)
5A
8A
MOD1500-200K
1500
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
7.38(187)
10.25(260)
12.00(305)
5.38(137)
7.00(178)
7A
12A
MOD2000-200K
2000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
8.50(216)
10.25(260)
13.50(343)
6.50(165)
7.50(191)
10A
15A
MOD3000-200K 3000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
8.50(216)
10.25(260)
13.50(343)
6.50(165)
7.50(191)
15A
25A
MOD5000-200K 5000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
10.00(254)
10.25(260)
17.00(432)
8.00(203)
11.00(279)
25A
40A
MOD7500-200K 7500
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
10.00(254)
10.25(260)
17.00(432)
8.00(203)
11.00(279)
40A
60A
MOD1000-200K 10000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
14.00(356)
10.25(260)
20.00(508)
12.00(305)
14.00(356)
50A
80A
